| Specilization | Standardization | Serialization | Intelligentization | |||
We established a professional team focusing on livestock and poultry farming, extensively connecting the industry, and deeply understanding the industry needs. We grasp future development trends and refine efficient solutions. | All our actions are for the needs and development trends of livestock and poultry farming. Design and formulate unified standards for quality, parameters, and performance for products. | We reasonably plan and develop a series of products to meet different needs according to demands so that customers can obtain high-quality professional motors in one stop. | We provide a digital base to visualize breeding data, realize unattended, remote control, and automatic management of production equipment, and promote the development of livestock and poultry breeding in standardization and scale. |
 |  |  |  | |||
| Durability | Low energy | Strong overload | Large torque | |||
No wearing parts such as brushes and collector rings. IP67 dustproof and waterproof. Multiple protections such as WF1 anti-corrosion, F-class insulation, overcurrent, overload, overvoltage, undervoltage, overheating, etc. More stable and durable. | Energy efficiency level IE5. Permanent magnet excitation, no current excitation. High power factor, No rotor consumption. Energy saving up to 60% or more. | Greatly avoid the risk of burn-in and frequent shutdown within the range of temperature protection. | They can run at a very low speed and constant torque under the premise of ensuring high efficiency and energy saving, which is different from the low efficiency of traditional motors at low speed and high torque. |
 |  |  |  | |||
| Small in size | Light in weight | Low noise | Stepless speed | |||
Simple and small structure compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators. | Simple structure, and light in weight compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators. | Brushless rotors are driven by permanent magnets. High-quality brand bearings and outer dynamic balance rings are applied. Magnetic circuit designs are excellent. Those help to achieve low-noise operations. | Brushless operation technology was adopted for precise speed regulation. 0~10V analog, RS485 speed regulation, and ultra-wide speed regulation ratio. No gear with smooth speed regulation. |

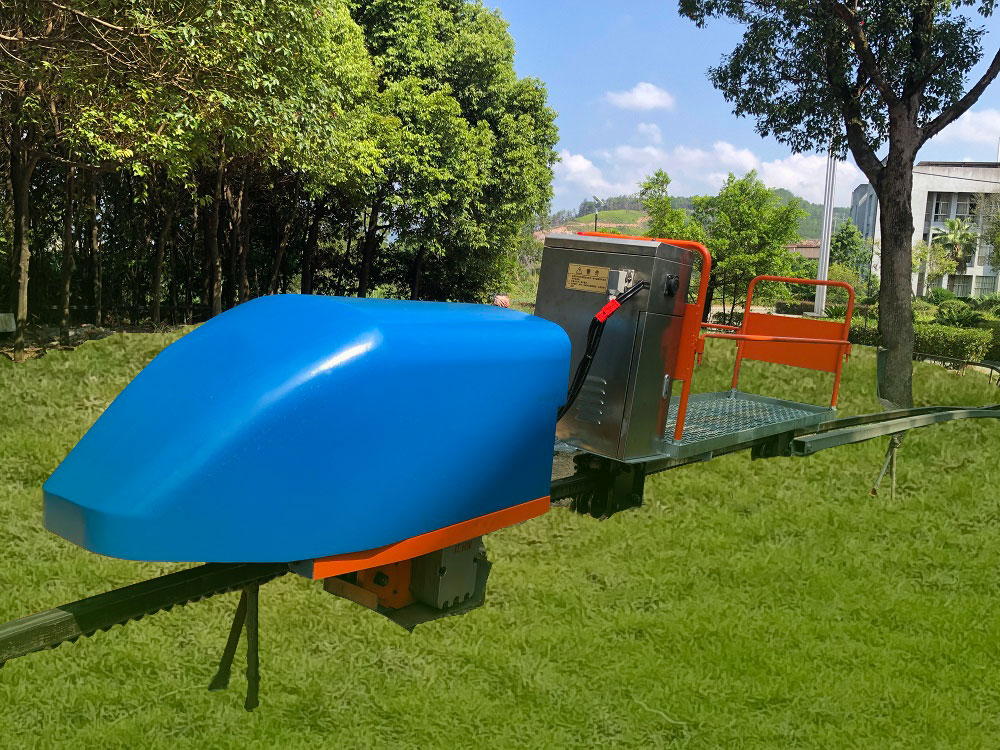

| Cruise Control | High Transportation Efficiency | High Production Efficiency | ||
Whether it is uphill or downhill, a constant speed is ensured to avoid frightening poultry and livestock from sudden speed changes, which will affect their healthy growth. | There is greater power under the same volume and realizes greater transfer requirements, compared with traditional motors of the same purpose. | There are stronger transportation capacity, higher production efficiency, and better economic benefits, compared with the rail conveyor equipped with traditional motors for the same purpose. |
| Energy Efficiency Rate: IE5 | Drive Mode: Sine wave vector control |
| Control Method: Modbus, 0~10V, digital input | Rated Voltage: 60V AC |
| Protection Grade: IP67 dustproof and waterproof, WF1 anti-corrosion | Rated Power: 5KW |
| Speed Range: 0~2500RPM | Rated Speed: 2200RPM |
| Operating Temperature: -20℃ ~ +50℃ | Operating Humidity: 10% ~ 95% |
| Housing’s Material: Aluminum alloy | Motor Structure: Splited |
| Protection Method: Softwares and hardwares' overvoltage and undervoltage; Driver's overtemperature, overcurrent, and overload. | |
| Model | Rated Power (kW) | Rated Voltage(V) | Speed Range(rpm) | Efficiency Class |
| MT series | 1.5 | 48~72 | 2000~3800 | IE5 |
| 2.2 | 48~72 | 2000~3800 | IE5 | |
| 3.0 | 48~72 | 2000~3800 | IE5 | |
| 4.0 | 48~72 | 2000~3800 | IE5 | |
| 5.5 | 48~72 | 2000~3800 | IE5 |
